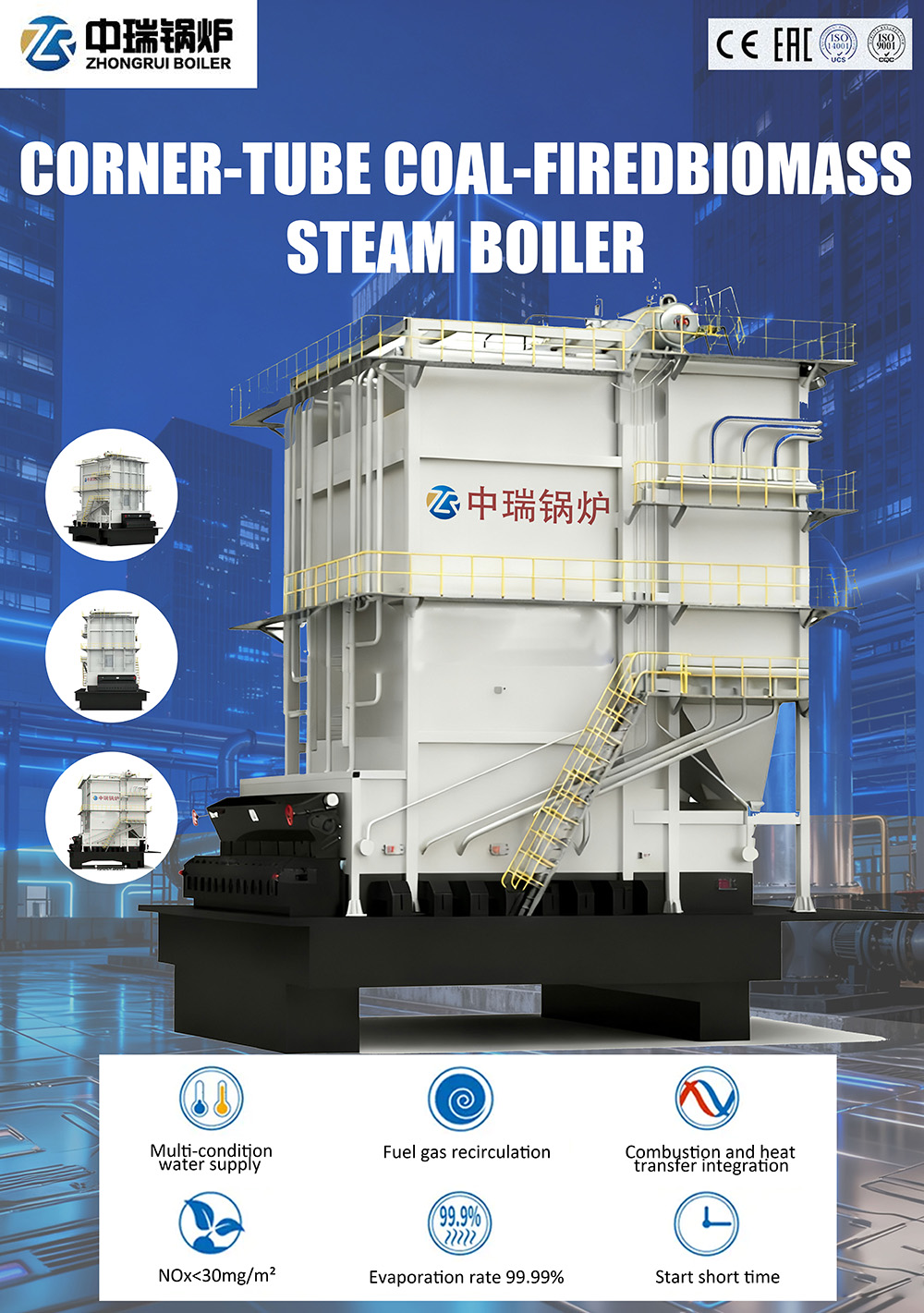

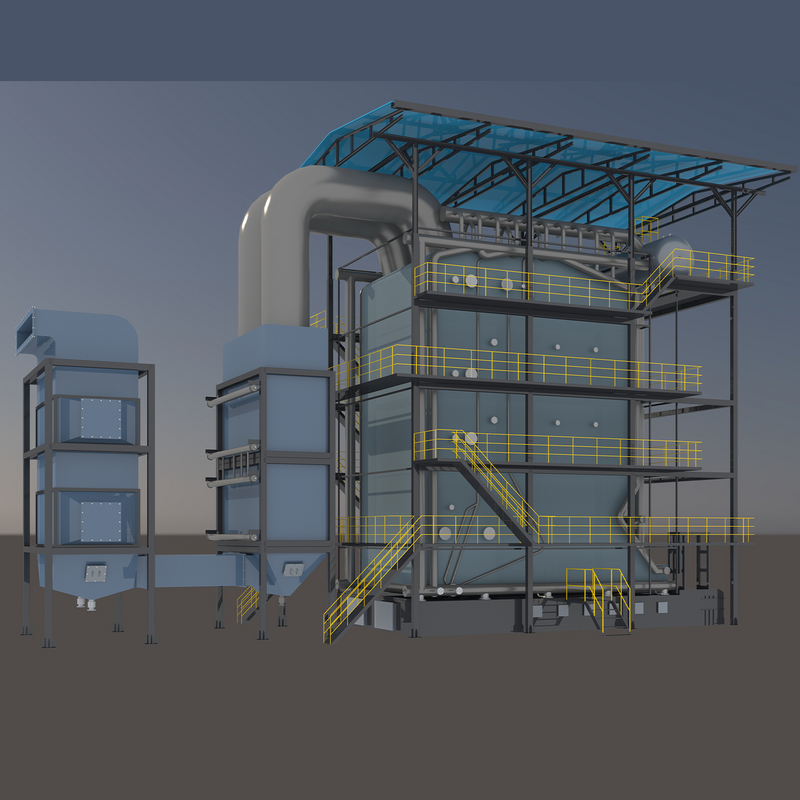

Corner-Tube Coal-Fired Biomass Steam Boiler

Select the Corner-Tube Coal-Fired Biomass Steam Boiler for efficient, clean, and reliable steam generation. It realizes full combustion of gas and oil, with high thermal efficiency and low emissions, making it an ideal choice for industrial production and commercial applications.

Model:
DHL20-DHL165
Brand:
Zhongrui
Applicable Fuel:
Wood chips, straw compacts, biomass pellets, palm shells, rice husks, wood chips, landscaping materials, coconut shells, bark (white bark), bagasse, etc.


Availability:



Inquire Add to Basket

PRODUCT CATALOG

Product Description

Parameter

Product Details

Introducing the Zhongrui Corner-Tube Coal-Fired Biomass Steam Boiler, an epitome of advanced engineering and high-efficiency performance, crafted by the esteemed Yangzhou Zhongrui Boiler Co., Ltd. With its pioneering independent R&D capabilities, this boiler seamlessly combines innovative structural design with sustainable energy solutions.

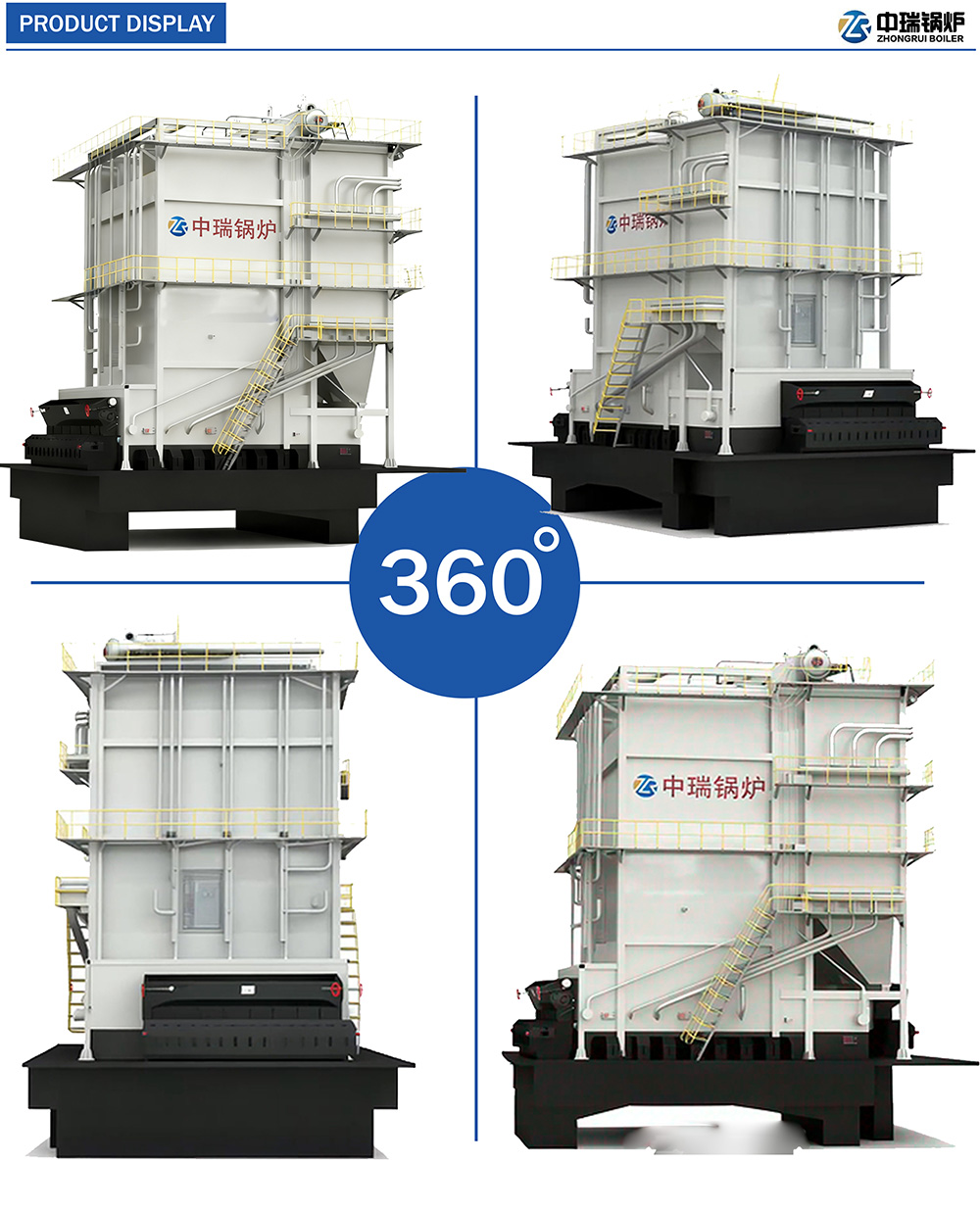

Distinguished by its unique angle-tube structure, this boiler ensures unparalleled structural integrity and exceptional heat transfer efficiency. Utilizing both coal and biomass as fuel sources, it offers consistent and reliable steam output for an array of industrial needs. A masterpiece of engineering, the boiler's scientifically optimized heating surface layout promotes complete fuel combustion and outstanding thermal efficiency, all while significantly reducing emissions to comply with rigorous environmental standards.

The boiler arrives as a fully integrated unit for swift on-site installation and commissioning. Requiring only the connection of water, fuel, and electricity, it eliminates the need for additional civil engineering work or specialized installation procedures, dramatically shortening project timelines. Each unit undergoes rigorous factory testing and comprehensive system commissioning, ensuring top-tier performance, safety, and reliability.

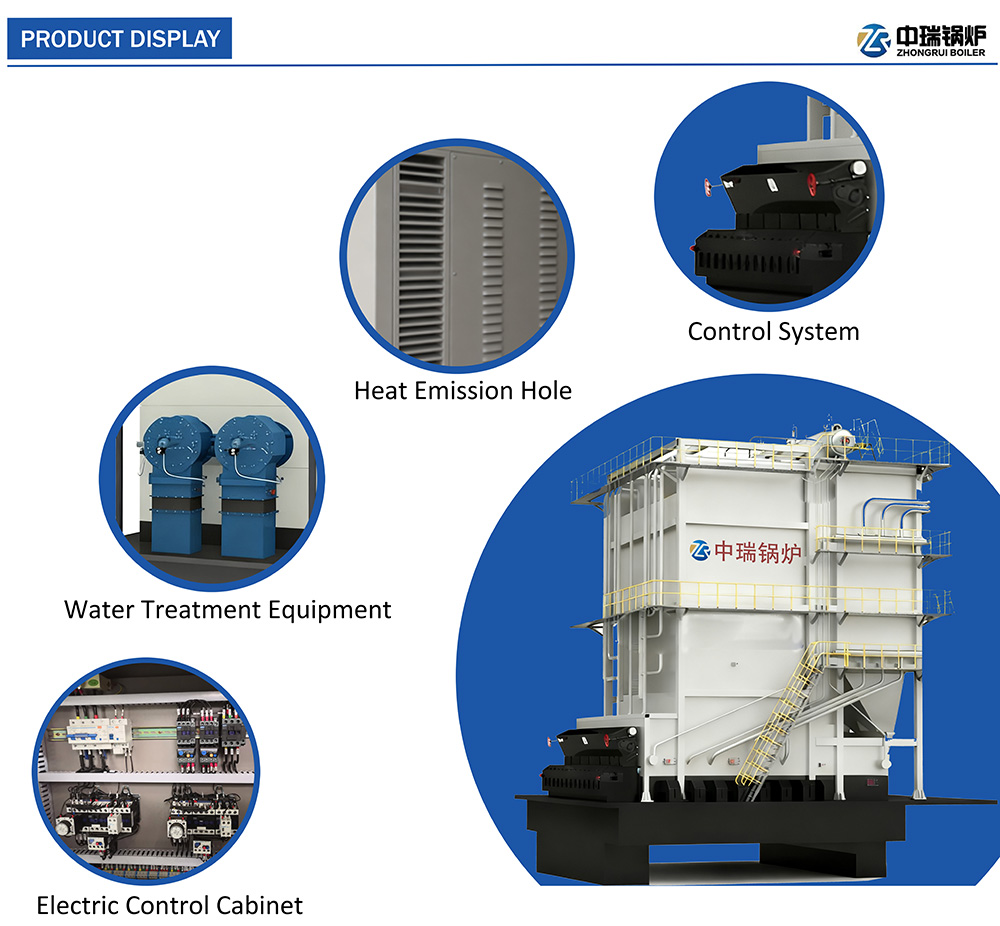

Comprising a meticulously designed angle-tube boiler body, high-caliber burners compatible with coal and biomass, a sophisticated control system, superior instrumentation, pumps, and premium accessories, this boiler excels in efficient fuel combustion, cost-effective operation, and simplified maintenance. It serves a wide range of industries including chemical, textile, food & beverage, pharmaceutical, and building materials, adeptly fulfilling diverse steam demands across various production processes.

Main Technical Parameters
Boiler Model: Angle-Tube Coal & Biomass Steam Boiler Series
Structure Type: Angle-Tube, Fire Tube, Multi-Pass
Rated Capacity: 20-165 t/h
Rated Pressure:1.25, 1.6, 2.5, 3.82MPa
Applicable Fuels: Coal, biomass, etc.

Technical Parameter Table

Items	Unit	Steam Boiler DHL20~165, Hot Water Boiler DHL14~116
Rated evaporation capacity of steam furnace	t/h	20, 30, 35, 65, 80, 100, 130, 165
Rated heat out put of hot water furnace	MW	14, 21, 29, 48, 58, 70, 92, 116
Working pressure	MPa	Steam Boiler: 1.25, 1.6, 2.5, 3.82, 5.3; Hot Water Boiler: 0.7, 1.0, 1.25, 1.6
Steam temperature	℃	Saturated (194, 204, 224, 250, 270); Superheated (300, 350, 400, 450)
Hot water temperature/Return water temperature	℃	95/70, 115/70, 130/70, 130/80, 150/90
Suitable fuel	-	Class II Biomass (SCII), Biomass Bulk Fuel (SS), Class II Bituminous Coal (AII), Class II Anthracite (WII)
Fuel consumption	Kg/h	3200, 4800, 6458, 10333, 12917, 14208, 15500, 16833
Boiler transport size	L	13, 13.1, 13.6, 15, 15.7, 15.6, 16.5, 20 (m)
	W	8.3, 9.1, 9.97, 12, 13.5, 14.3, 15.2, 17.4 (m)
	H	10, 10, 12.7, 14.4, 15.4, 15.4, 15.69, 16.4 (m)
Maximum transport size	L	7.4, 8.2, 10.5, 13.1, 14, 15.8, 16.5, 14.2 (m)
	W	1.2, 1.2, 1.4, 1.5, 1.5, 1.6, 1.6, 14 (m)
	H	1.2, 1.2, 1.4, 1.5, 1.5, 1.6, 1.6, 15.6 (m)
Maximum transport weight	t	6.8, 9.6, 10.5, 15.6, 15.9, 16.7, 17.2, 10.6
