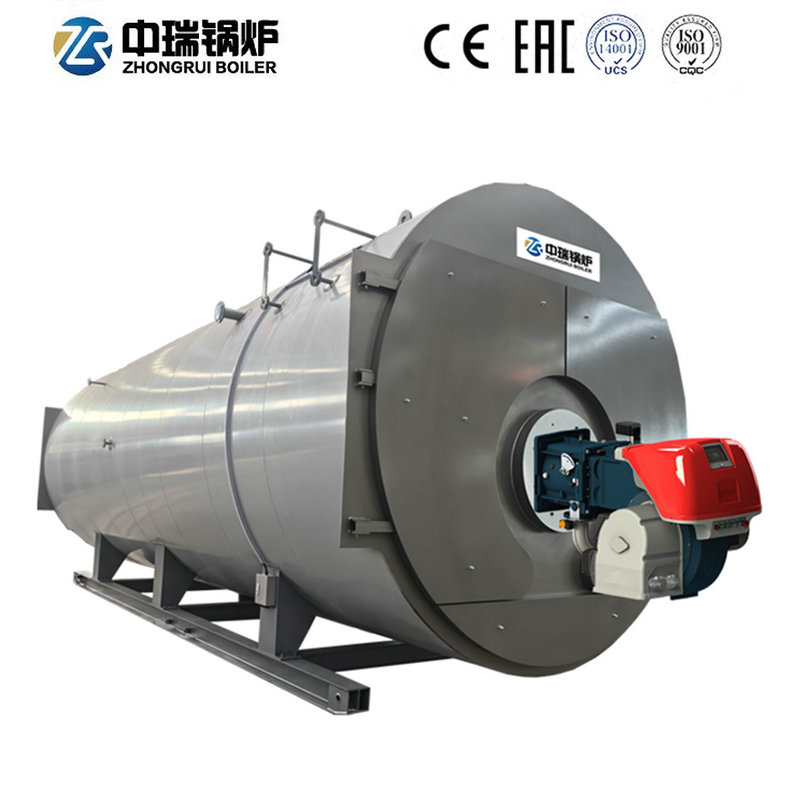

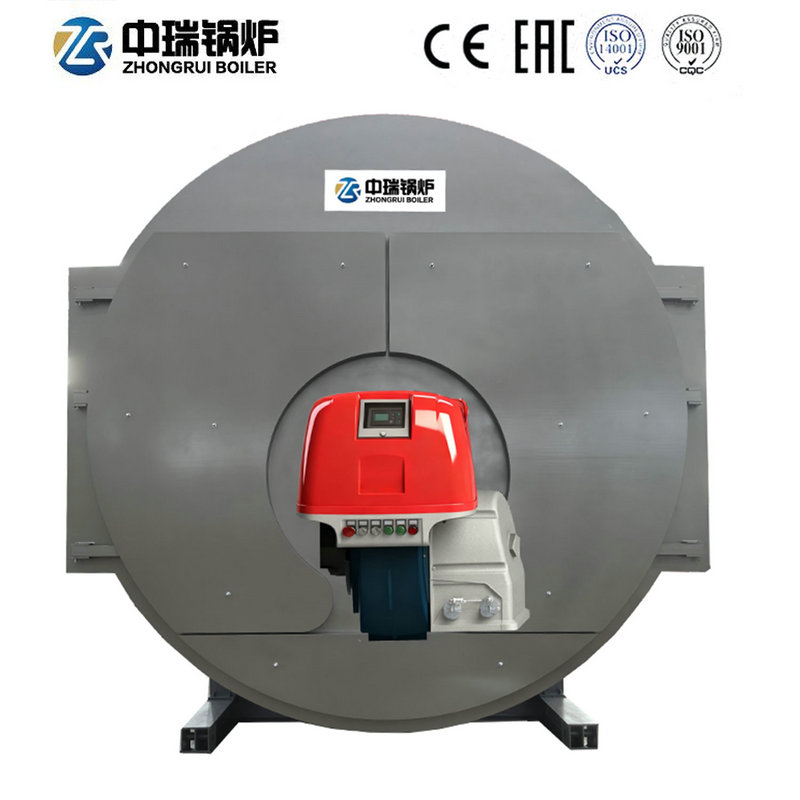

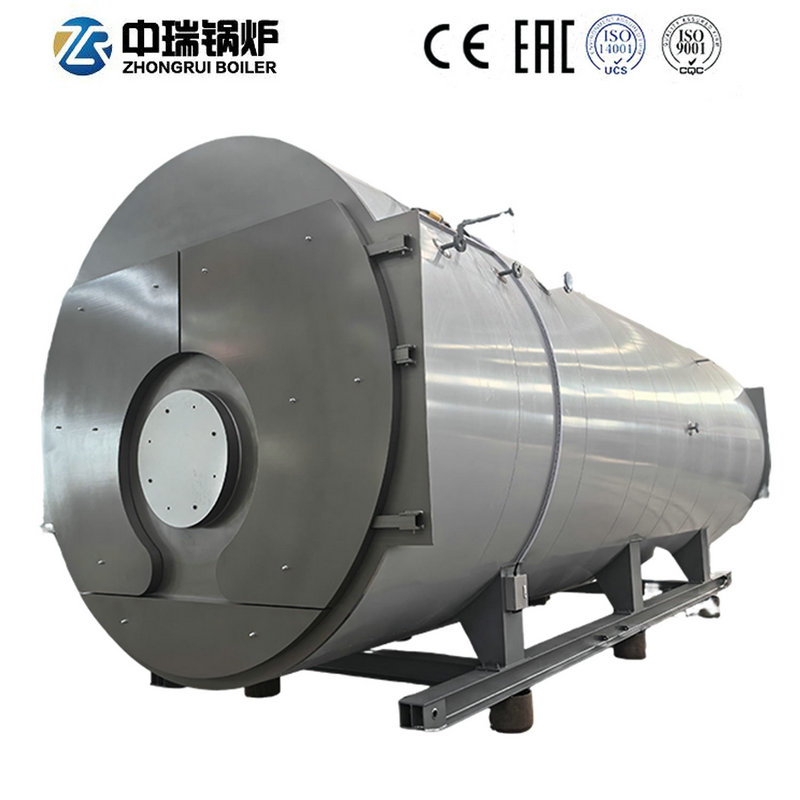

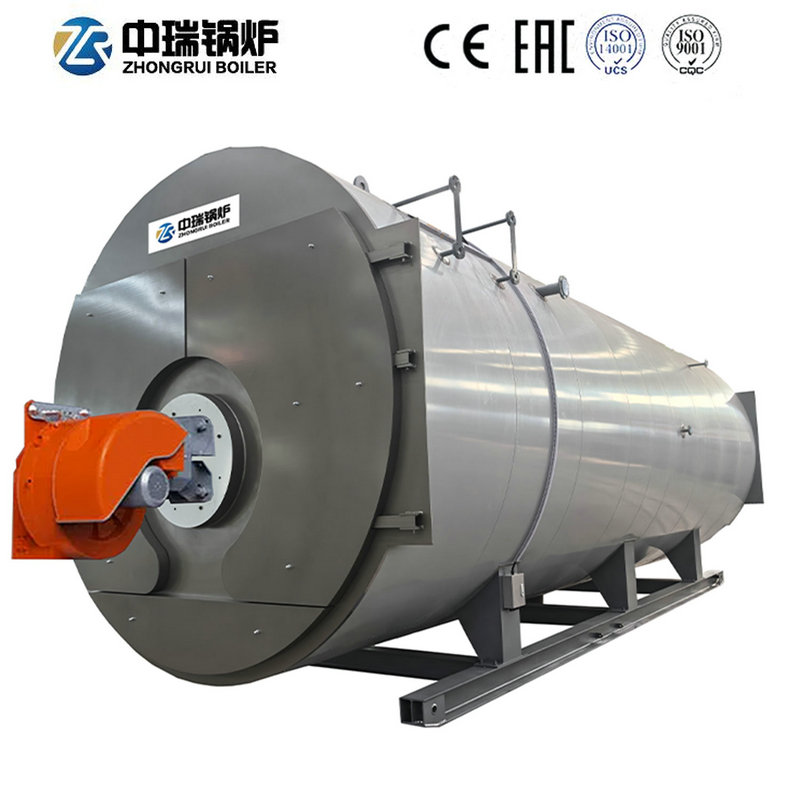

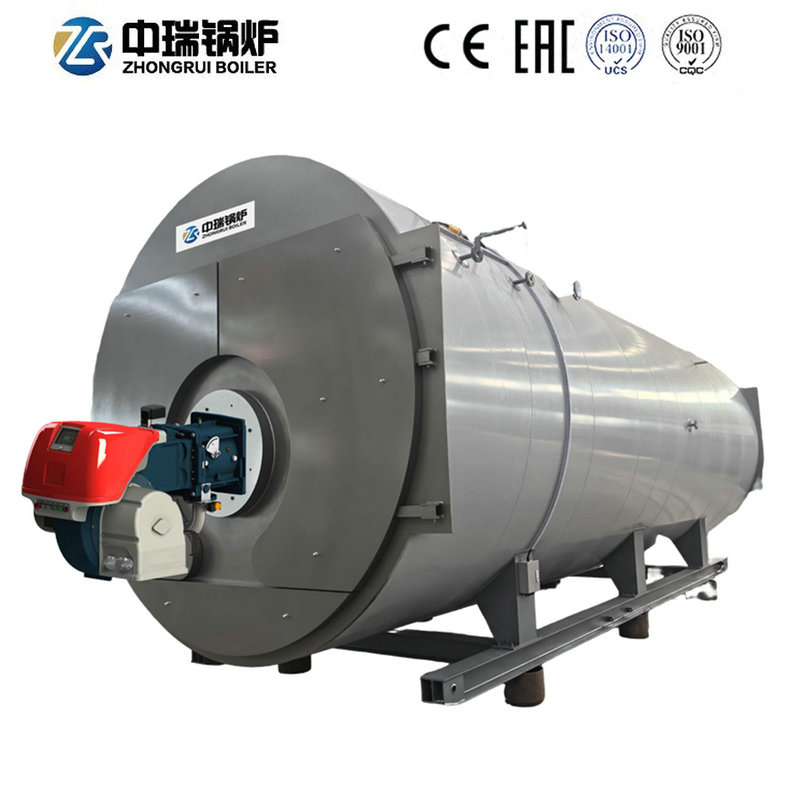

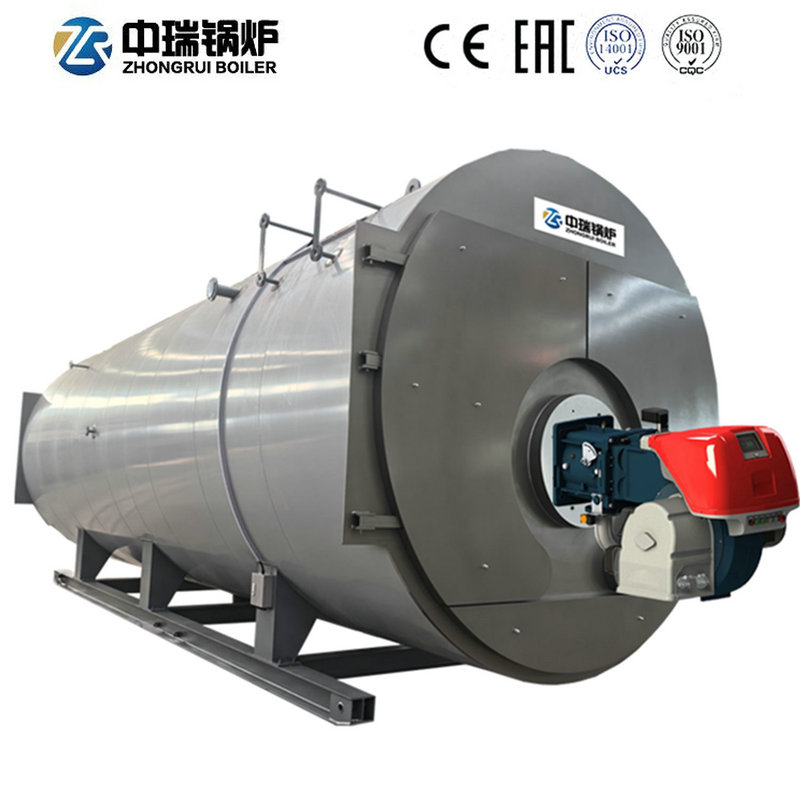

YYW Gas Oil Heat Transfer Oil Boiler

Select the YYW Gas Oil Heat Transfer Oil Boiler for efficient, clean, and reliable Hot Water generation. It realizes full combustion of gas and oil, with high thermal efficiency and low emissions, making it an ideal choice for industrial production and commercial applications.

Model:
YYW350-YYW2900
Brand:
Zhongrui
Applicable Fuel:
Natural gas, liquefied petroleum gas (LPG), city gas, coke oven gas (COG), blast furnace gas (BFG), light oil (such as diesel), heavy oil (such as fuel oil), methanol, waste oil (such as waste engine oil and waste lubricating oil, which need to be filtered and purified), biodiesel, etc.


Availability:



Inquire Add to Basket

PRODUCT CATALOG

Product Description

Parameter

Product Details

Introducing the YYW Gas Oil Heat Transfer Oil Boiler, a pinnacle of high-efficiency thermal technology ideal for industrial applications demanding precision and reliability. Engineered with cutting-edge gas combustion technology and a horizontal structural layout, this boiler excels in providing steady, high-temperature thermal fluid supply, making it a quintessential choice for complex industrial scenarios.

Equipped with an advanced gas combustion system and top-tier gas components, this boiler supports natural gas, liquefied petroleum gas, and city gas, ensuring rapid and effective heat transfer with ultra-high thermal efficiency. Its horizontal design is crafted for seamless integration into diverse industrial environments from manufacturing plants to processing workshops. Delivered fully assembled, it allows for swift on-site installation and commissioning, eliminating the need for complex civil infrastructure or lengthy assembly processes, thus significantly cutting down on deployment time and cost.

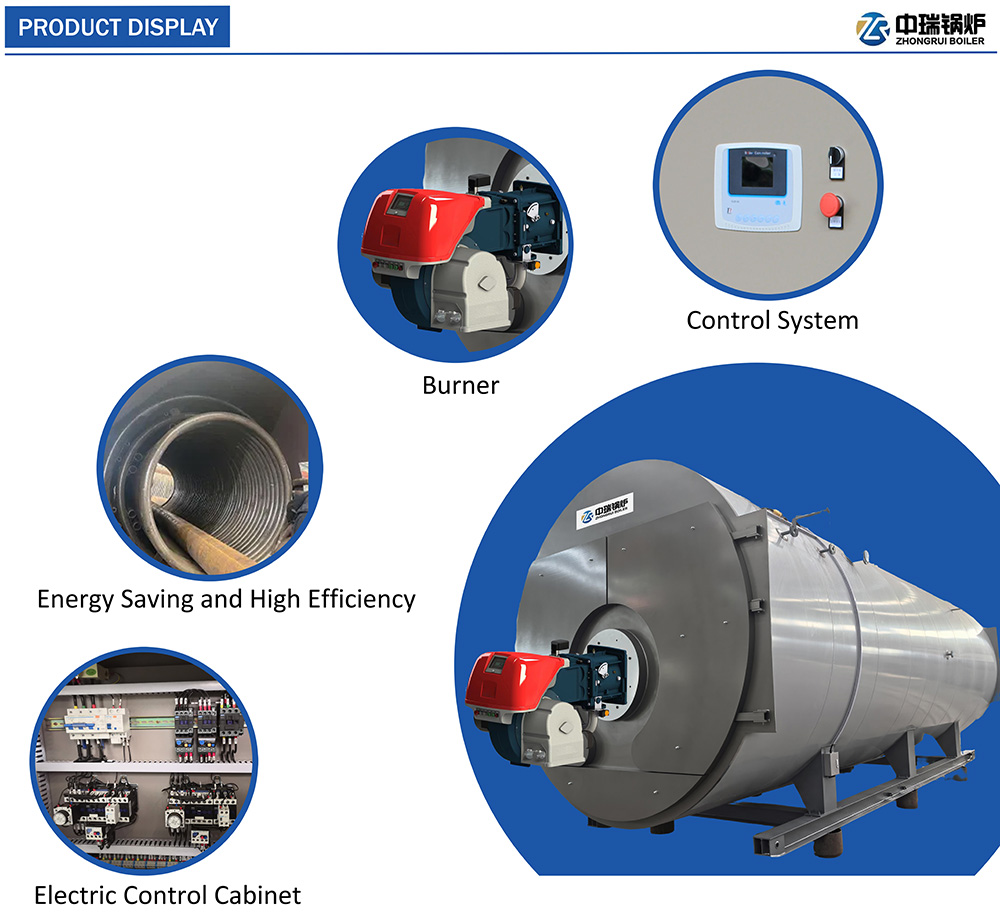

Every YYW Gas Oil Heat Transfer Oil Boiler undergoes rigorous factory inspections and exhaustive performance testing to ensure unparalleled safety, reliability, and an extended service lifespan. The system features a meticulously sealed horizontal boiler body, an efficient gas combustion system, an intelligent temperature control mechanism, and high-quality instrumentation, all harmoniously synchronized for optimal efficiency and stable operation.

Boasting clean gas combustion with low emissions, user-friendly operation, precise thermal oil temperature control, and outstanding performance, this boiler is a perfect fit for a broad spectrum of industries. It's ideally suited for chemical processing, textile manufacturing, food production, and any sector where stable and reliable high-temperature thermal fluid is a necessity.

Main Technical Parameters
Boiler Model: YYW Series
Structure Type: Horizontal Thermal Oil Boiler, Gas-Fired (suitable for natural gas, liquefied petroleum gas, city gas, etc.)
Rated Capacity: 350-14000KW
Rated Pressure: Low Pressure

Rated Temperature: 320(350) ºC
Applicable Fuel: Natural Gas, Liquefied Petroleum Gas, City Gas
Circulation Mode: Forced Circulation

Main Technical Parameters of YYW Series Gas Oil Heat Transfer Oil Boiler

Model		Unit	YYW-3500-Y.Q	YYW-4700-Y.Q	YYW-5900-Y.Q	YYW-7000-Y.Q	YYW-8200-Y.Q	YYW-9400-Y.Q	YYW-10500-Y.Q	YYW-12000-Y.Q	YYW-14000-Y.Q
Rated Thermal Power		10⁴ kcal/h	3500	4700	5900	7000	8200	9400	10500	1200	14000
Rated Thermal Power		10⁴ kcal/h	300	400	500	600	700	800	900	1000	1200
Working Pressure Pressure		MPa	0.7, 1.0, 1.25
Maximum Operating Temperature		°C	320(350)
Boiler Thermal Efficiency		%	92-94
Fuel Consumption	Diesel Oil	Kg/h	328	437.3	546.7	656	765.4	874.7	984	1093.4	1312
	Heavy Oil	Kg/h	348	464	580	696	812	928	1044	1160	1392
	Natural Gas	m³/h	400	533.4	666.7	800	833.4	1066.7	1200	1333.4	1600
	Liquefied Petroleum Gas		145	193.3	241.7	290	338.3	386.7	435	483.4	580
	City Gas		843	1124	1405	1686	1967	2248	2529	2810	3372
Overall Dimensions	Length	mm	6000	6700	7300	7800	8000	8400	8800	9700	11200
	Width		2920	3230	3230	3350	3500	3600	3700	3700	3700
	Height		2920	3230	3230	3350	3500	3600	3700	3700	3700
Oil Outlet / Oil Return Port Diameter		DN	200	200	250	250	300	300	300	350	350
Transport Weight		t	13	15	18	21	25	28	30	33	37

Main Technical Parameters of YYW Series Gas Oil Heat Transfer Oil Boiler

Model		Unit	YYW-350-Y.Q	YYW-700-Y.Q	YYW-900-Y.Q	YYW-1200-Y.Q	YYW-1400-Y.Q	YYW-1800-Y.Q	YYW-2300-Y.Q	YYW-2900-Y.Q
Rated Thermal Power		10⁴ kcal/h	350	700	900	1200	1400	1800	2300	2900
Rated Thermal Power		10⁴ kcal/h	30	60	75	100	120	150	200	250
Working Pressure Pressure		MPa	0.7, 1.0, 1.25
Maximum Operating Temperature		°C	320(350)
Boiler Thermal Efficiency		%	92-94
Fuel Consumption	Diesel Oil	Kg/h	32.8	54.37	82	109.3	142.1	164	218.7	273.4
	Heavy Oil	Kg/h	34.8	58	87	116	150.8	174	232	290
	Natural Gas	m³/h	40	66.7	100	133.4	173.4	200	266.7	333.4
	Liquefied Petroleum Gas		14.5	24.2	36.3	48.3	62.8	72.5	96.7	120.8
	City Gas		84.3	140.5	210.8	281	365.3	421.5	561	702.5
Overall Dimensions	Length	mm	2400	3000	3500	4000	4300	4300	5300	6300
	Width		1200	1700	1820	1920	1950	2400	2520	2800
	Height		1200	1700	1820	1920	1950	2400	2520	2800
Oil Outlet / Oil Return Port Diameter		DN	100	100	125	125	125	150	150	150
Transport Weight		t	2.4	2.9	5	5.5	6.3	7.8	9.5	11
