Boilers serve as core thermal energy equipment for industrial manufacturing and thermoelectric power supply. Many clients lack a comprehensive understanding of the complete boiler production workflow, equipment parameters, as well as safety and economic performance indicators. Yangzhou Zhongrui Boiler has years of in-depth experience in boiler R&D, manufacturing and export. Today, with professional instructional diagrams, we will fully break down the complete basic principles of power plant boilers, covering four core sections: equipment composition, production workflow, equipment characteristics, and safety & economic indicators, with all key professional knowledge fully elaborated.

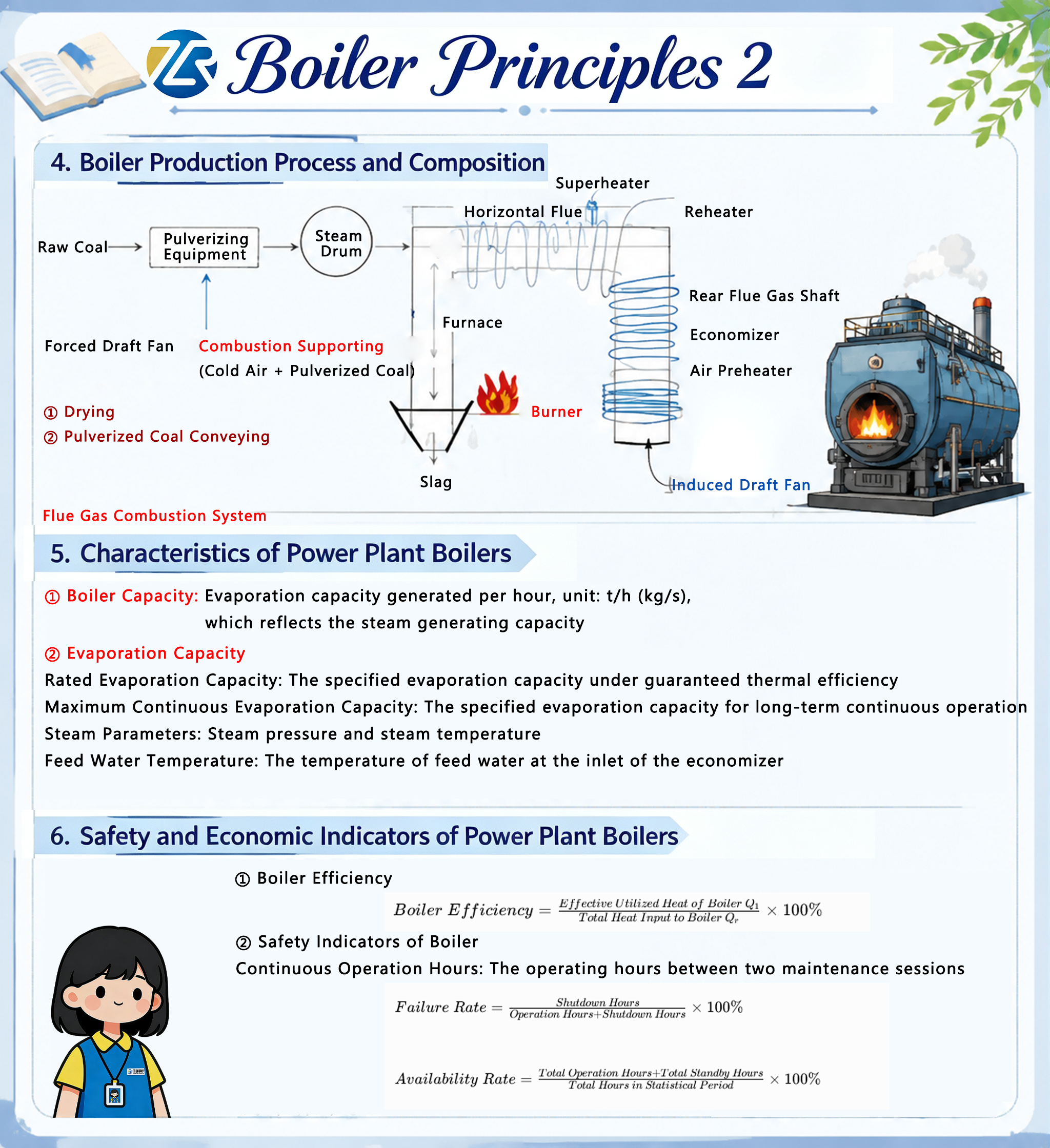

I. Complete Boiler Production Process and Overall Unit Composition

A full boiler system consists of two major modules: the flue gas combustion system and the water-steam circulation system. A closed-loop process is formed from raw coal feeding to flue gas emission and slag discharge.

1. Fuel Conveying & Preparation Stage

Raw coal is first fed into pulverizing equipment for processing, which consists of two working procedures: drying and pulverized coal conveying. The matched forced draft fan delivers cold air; after mixing cold air with pulverized coal, the mixture is sent into the furnace to support combustion and supply sufficient oxygen for burning.

2. Furnace Combustion & Water-Steam Circulation Stage

Processed pulverized coal is fed into the burner and fully combusts inside the furnace to release heat. High-temperature flue gas generated in the furnace sequentially flows through the horizontal flue, superheater and reheater to complete high-temperature heat exchange, before entering the rear shaft.

Water-side workflow: Qualified treated feedwater first enters the steam drum. Water-steam conversion is realized via heat exchange inside the furnace. The superheater and reheater further raise steam temperature, producing high-temperature and high-pressure steam that meets working condition requirements for power generation and industrial production.

3. Rear Heat Exchange & Flue Gas Discharge Stage

After entering the rear shaft, flue gas passes through the economizer and air preheater in sequence to recover residual heat of flue gas. It preheats the combustion air delivered to the furnace and the boiler feedwater, greatly improving thermal energy utilization efficiency. Finally, low-temperature flue gas is extracted and discharged by the induced draft fan. Solid impurities produced from pulverized coal combustion settle to form furnace slag, which is collected and disposed of uniformly.

4. List of Core Components of the Complete System

Pulverizing equipment, forced draft fan, steam drum, furnace, burner, superheater, reheater, economizer, air preheater, induced draft fan

II. Interpretation of Core Characteristic Parameters of Power Plant Boilers

When purchasing or customizing industrial / power plant boilers, capacity, evaporation capacity, steam parameters and feedwater temperature are the four core selection indicators. When customizing equipment for customers, Yangzhou Zhongrui Boiler will strictly match all parameters in accordance with actual working conditions.

1. Boiler Capacity

Boiler capacity refers to the evaporation capacity the boiler can generate per hour, measured in t/h (tons per hour) and kg/s (kilograms per second). It intuitively reflects the overall steam-generating capacity of the boiler, and serves as the core criterion to classify boilers into small, medium and large types.

2. Classification Criteria of Evaporation Capacity

l Rated Evaporation Capacity: The standard steam output specified when the boiler operates under standard working conditions with guaranteed thermal efficiency.

l Maximum Continuous Evaporation Capacity: The ultimate stable steam output that the boiler can sustain during long-term continuous operation.

3. Steam Parameters

These are two critical indicators of generated steam: steam pressure and steam temperature. They directly determine the work capacity of steam, and accommodate diverse process requirements in power generation, chemical industry, food processing and other sectors.

4. Feedwater Temperature

It specifically refers to the water temperature at the inlet of the economizer. Feedwater temperature exerts a direct impact on boiler thermal efficiency and fuel consumption, and acts as the design basis for the water treatment equipment matched to the whole system.

III. Core Assessment Indicators for Safety & Economy of Power Plant Boilers

For power plants and large industrial parks, the operational economy and long-term operational safety of boilers are the priorities of operation and maintenance management. The standardized calculation formulas commonly adopted in the industry are listed as follows:

(I) Boiler Efficiency (Core Economic Indicator)

Boiler efficiency is a key figure to measure the utilization level of thermal energy. Its calculation formula is as follows:

It represents the conversion ratio of fuel heat to effective steam thermal energy. The higher the ratio, the lower the fuel consumption and the better the operating cost performance. Yangzhou Zhongrui optimizes the heat exchange structure for all boiler series, greatly boosting boiler thermal efficiency and helping customers cut fuel costs in the long run.

(II) Safety Operation Indicators of Boilers

1. Continuous Operation Hours

It is defined as the total duration of uninterrupted stable operation between two maintenance cycles of the boiler. A higher value of continuous operation hours indicates a stable boiler structure and low failure rate, which reduces production capacity losses caused by shutdown maintenance.

2. Accident Rate

It is used to quantify the frequency of boiler shutdown caused by failures. The calculation formula is as follows:

3. Availability Rate

It comprehensively assesses the effective service capacity of boilers during long-term operation. The calculation formula is as follows:

The above basic boiler principles, technical parameters and operational indicators are applicable to all categories of equipment, including oil & gas-fired boilers, thermal oil boilers, biomass boilers, power station boilers and so on.

Yangzhou Zhongrui Boiler Sales Co., Ltd. specializes in customized manufacturing and full export supporting services for the complete boiler product line. We can accurately match boiler capacity, evaporation capacity and steam parameters in accordance with customers’ actual working conditions. Meanwhile, our optimized heat exchange structure ensures high thermal efficiency and high operational availability, lowering operation & maintenance accident rates.

Should you have any demands regarding boiler type selection, foreign trade export, or customized working condition solutions, please feel free to contact us for detailed discussion at any time.
